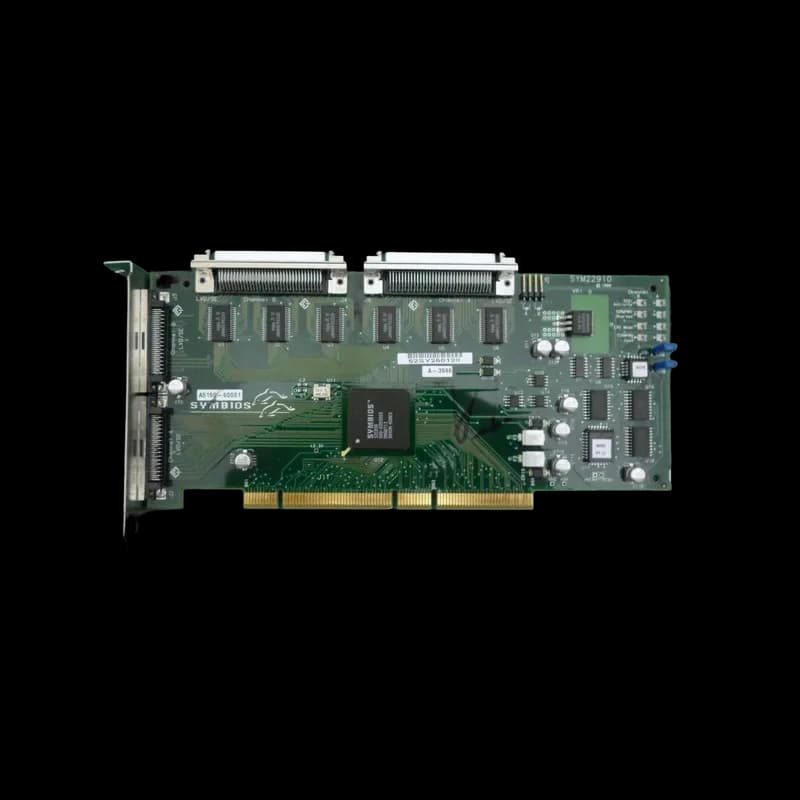

A5150A - HP 2-Ports Ultra 2 SCSI PCI LVD HBA
SKU A5150A
HP A5150A 2-Ports Ultra 2 SCSI PCI LVD Host Bus Adapter
The HP A5150A is a dual-channel PCI Ultra2 SCSI Host Bus Adapter designed to provide high-performance SCSI connectivity for supported HP systems. It supports both Low Voltage Differential (LVD) and Single-Ended (SE) SCSI devices through two independent Ultra2 SCSI channels, enabling connection of multiple internal and external SCSI peripherals via a single PCI slot.
Applications & Use Cases:
Server Storage Expansion: Connects supported PCI-based systems to Ultra2 SCSI storage devices.
Internal Storage Integration: Supports attachment of internal SCSI drives and peripherals.
External Peripheral Connectivity: Enables connection of external SCSI devices through VHDCI ports.
Multi-Device SCSI Environments: Dual channels allow multiple SCSI device connections.
Legacy Infrastructure Support: Suitable for environments requiring Ultra2 SCSI technology.
System Upgrades: Adds Ultra2 SCSI capability to compatible PCI systems.
- Feature Bullets:
- Dual-channel Ultra2 SCSI host adapter
- Supports LVD and Single-Ended SCSI devices
- Universal 3.3V and 5V PCI compatibility
- Operates in 32-bit and 64-bit PCI slots
- Up to 80 MB/s Ultra2 LVD throughput
- Two external 68-pin VHDCI connectors
- Two internal 68-pin high-density connectors
- Bus-master DMA architecture
- Flash EEPROM and NVRAM support
- Designed for HP enterprise platforms
- Benefits:
- Supports multiple SCSI devices simultaneously.
- Delivers up to 80 MB/s Ultra2 performance.
- Compatible with both LVD and SE devices.
- Provides flexible internal and external connectivity.
- Fits both 3.3V and 5V PCI environments.
- Bus-master DMA improves data transfer efficiency.
- Key Specifications:
- Interface: PCI
- PCI Support: 32-bit / 64-bit, 33 MHz
- PCI Voltage: Universal 3.3V / 5V
- SCSI Channels: 2 Independent Channels
- SCSI Standard: Ultra2 Wide SCSI
- SCSI Signaling: LVD and Single-Ended
- Maximum LVD Transfer Rate: Up to 80 MB/s
- Maximum SE Transfer Rate: Up to 40 MB/s
- External Connectors: 2 × 68-pin VHDCI
- Internal Connectors: 2 × 68-pin High Density
- DMA Support: Bus Master DMA
- Flash Memory: Flash EEPROM
- NVRAM: Supported
Technical Information
| Host Interface | PCI |
|---|
Interfaces/Ports
| Quantity of Ethernet LAN Ports (RJ-45/SFP/SFP+) | 2 |
|---|---|
| Quantity of Total Networks Ports | 2 |
| Media Standard | Optical Fiber |
Also known as — equivalent part numbers
This part is sold under the following identifiers. Search any of them to reach this page.
- Primary part number
- A5150A
Warranty
Warranty included, backed directly by SAHS. See our Warranty Policy for details.
Returns
Contact our team with your order details and we'll walk you through the process — see our Shipping & Returns page and policies for full details.
