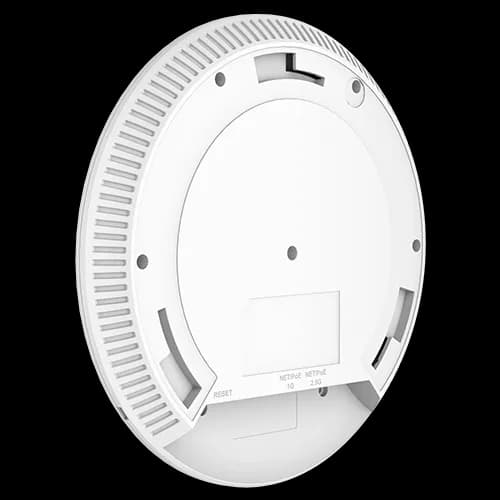

Grand Stream GWN7664E AX6000 Wi-Fi 6 Dual-band 2x 2.5GbE Access Point

Grand Stream GWN7664E AX6000 Wi-Fi 6 Dual-band 2x Ports 2.5Gigabit Ethernet 8x Internal Antennas Wireless Access Point

Overview:

The GWN7664E is an enterprise-grade Wi-Fi 6 (802.11ax) access point designed for medium-to-high density environments, delivering up to 6 Gbps wireless throughput, strong coverage, and advanced security with centralized or controller-less management.

Applications & Use Cases:

Enterprise Office Wi-Fi: Provides reliable high-speed connectivity for employees and devices.

High-Density Environments: Handles large numbers of users in campuses, events, or auditoriums.

Hospitality (Hotels/Resorts): Ensures seamless guest Wi-Fi across multiple floors.

Educational Institutions: Supports classrooms, labs, and student devices simultaneously.

Retail & Commercial Spaces: Enables stable Wi-Fi for POS systems and customer access.

Multi-Floor Buildings: Delivers wide coverage with fewer access points required.

VoIP & Real-Time Apps: Optimized for low-latency voice and video communication.

Managed Wi-Fi Networks: Ideal for centralized cloud-managed deployments across sites.

SMB Networking: Cost-effective enterprise Wi-Fi without requiring dedicated controllers.

• Key Features:
• Wi-Fi Standard: IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6)
• Wireless Throughput: Up to 6 Gbps aggregate
• Wired Throughput: Up to 5 Gbps aggregate
• MU-MIMO: Dual-band 4x4:4 MU-MIMO with DL/UL OFDMA
• Coverage Range: Up to 175 meters
• Concurrent Clients: Supports up to 512 devices
• Ports: 2x 2.5 Gigabit Ethernet ports (PoE+)
• Antennas: 8x Internal Antennas
• SSIDs: Up to 32 SSIDs (16 per band)
• Performance & Wireless Specs:
• 2.4GHz Throughput: 1147Mbps (4x4:4)
• 5GHz Throughput: 4.8Gbps (4x4:4)
• OFDMA Technology: Improves efficiency in dense environments
• Beamforming: Directs signal toward connected devices for better performance
• Security Features:
• WPA/WPA2-PSK & Enterprise (TKIP/AES)
• WPA3 support
• Anti-hacking secure boot
• Unique security certificates per device
• Random default passwords for enhanced protection
• Management & Control:
• Embedded Controller: Manages up to 50 local APs
• Cloud Management: Via GWN.Cloud (unlimited APs)
• On-Premise Management: GWN Manager software
• Controller-less Architecture: Built-in web UI for easy deployment
• Additional Features:
• Advanced QoS for low-latency applications
• Mesh networking support
• Captive portal support
• PoE+ auto power adaptation
• Optimized for VoIP/Wi-Fi calling environments
