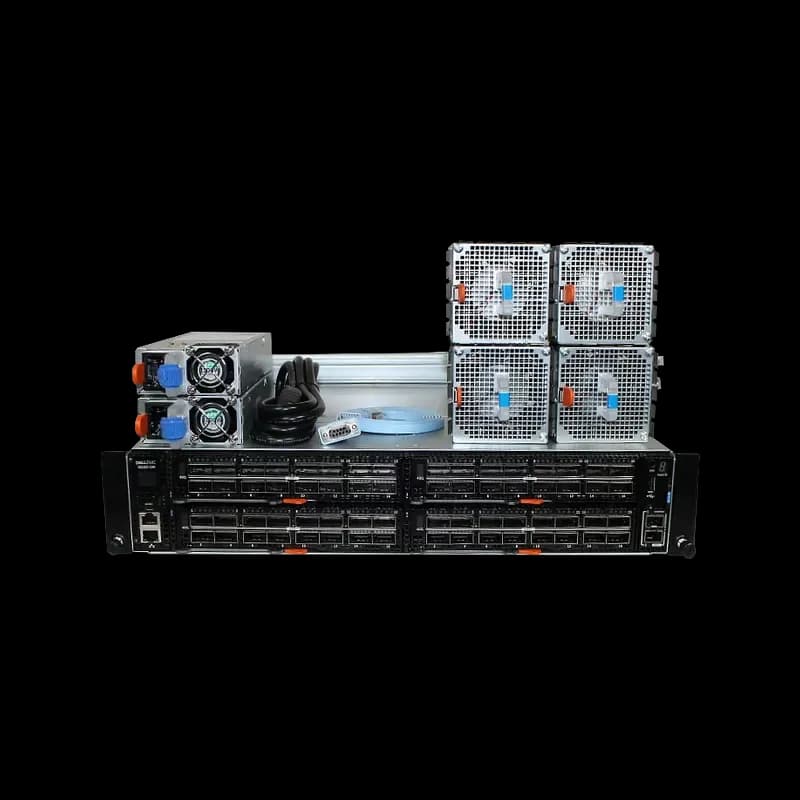

S6100-ON - Dell 2-Port SFP+ 4-Open Slot Modular Switch Chassis
SKU S6100-ON
Dell S6100-ON Networking 2x Ports SFP+ 4x 40GbE QSFP+ Modules Slots 2x 1100Watts PSU Layer3 2U Rack-Mountable Modular Switch Chassis
A 2RU high-density fixed switch supporting 10/25/40/50/100GbE connectivity with flexible port options. It can be configured with up to 32×100GbE (QSFP28), 64×50GbE (QSFP28), 64×40GbE (QSFP+), 128×25GbE (SFP28), or 128×10GbE using breakout cables. It also includes two fixed SFP+ ports supporting 10GbE, 1GbE, or 100MbE.
The switch provides up to 6.4 Tbps of full-duplex switching capacity with a non-blocking architecture, ensuring line-rate performance even under full load and sub-microsecond latency.
It supports scalable Layer 2 and Layer 3 Ethernet switching, including QoS and standards-based IPv4/IPv6 features, along with routing protocol support such as OSPF and BGP.
For high availability and load balancing, it supports Virtual Link Trunking (VLT) and multiple VLT (mVLT) for multi-chassis link aggregation.
Additional features include VXLAN gateway functionality, jumbo frame support for large data transfers, and up to 128 link aggregation groups with 16 ports per group using enhanced hashing.
General Information
| Model | S6100-ON |
|---|---|
| Product Type | Switch Chassis |
| Use Case | Data Center Switch |
Interface/Ports
| POE/POE+ Supports | Non-PoE |
|---|---|
| Console Management Port | Yes |
| Quantity of Fixed Ports/Expansion Slots | 6 |
| Uplink Port | Yes |
| Expansion Slots Details | SFP+ |
| Quantity of SFP+ Slots | 2 |
Media & Performance
| Ethernet Standard | 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit Ethernet |
|---|---|
| Media Standard | Optical Fiber |
| Technology Standard | 10GBase-X, 25-Gbase-X, 40GBase-X, 50GBase-X, 100GBase-X |
Technical Information
| Airflow Direction | I/O-to-PSU Standard Airflow |
|---|---|
| Supported OS | OS9 |
Power Description
| Power Rating | 1100 Watts |
|---|---|
| Installed PSU | 2 |
Additional Information
| Interfaces and Speeds | 8-Port Switches 100GbE |
|---|
Also known as — equivalent part numbers
This part is sold under the following identifiers. Search any of them to reach this page.
- Primary part number
- S6100-ON
- Equivalent / replacement part numbers
- 6N1J1
Warranty
Warranty included, backed directly by SAHS. See our Warranty Policy for details.
Returns
Contact our team with your order details and we'll walk you through the process — see our Shipping & Returns page and policies for full details.
